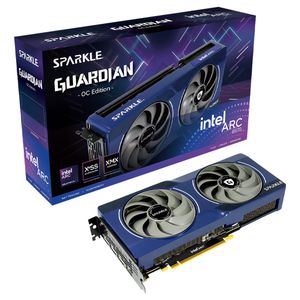

The Sparkle Intel Arc B570 Guardian OC 10GB graphics card features a 2660MHz boost clock, 10GB GDDR6 160-bit memory interface, PCIe 4.0, 1 x HDMI 2.1, 3 x DisplayPort 2.1, TORN Cooling 2.0 with dual AXL fans, Vulkan 1.3, OpenGL 4.6, OpenCL 3.0, and DirectX 12 Ultimate support.
Features
Sparkle Intel® Arc™ B570 Guardian OC Graphics Card, 10GB GDDR6, Torn Cooling 2.0, Axial Fan, Breathing Light, Metal Backplate
The SPARKLE Intel® Arc™ B570 GUARDIAN OC Graphics Card, offers high-resolution gaming with Intel XeSS AI upscaling, ray tracing, and 8K media support, plus accelerated AI features for enhanced creation and editing through Intel AI Playground.
GUARDIAN series equipped TORN 2.0 Cooling with double customised AXL fans, 2.2-slot design and full-metal backplate. A blue breathing light effect has added a touch of elegance to your gaming setup.
- TORN Cooling 2.0
- Metal Backplate, Pre-Installed
- Ray Tracing
- Variable Rate Shading (VSR)
- DirectX 12 Ultimate
- Vulkan 1.3
- OpenGL 4.6
- OpenCL 3.0
- Adaptive Sync
- AV1 Encode / Decode
- VP9 Bitstream & Decoding
- Intel Deep Link Hyper Compute
- Intel Deep Link Hyper Encode
- Intel Deep Link Stream Assist.
Specifications
| Model Number |
1A1-S00421600G |
| Boost Clock |
2660 MHz |
| Xe-Core |
18 |
| Ray Tracing Units |
18 |
| Intel® XMX Engines |
144 |
| GPU Peak Tops (Int8) |
203 |
| Memory Size |
10 GB GDDR6 |
| Graphics Memory Interface |
160-bit |
| Graphics Memory Bandwidth |
380 GB/s |
| Max Resolution |
Up to 8K at 120 Hz HDR with DSC |
| PCI Express Configurations |
PCI Express 4.0 x 8 |
| TBP |
170 Watt |
| Dimension |
242 x 105 x 44 mm |
| Weight |
796 g |
| Width |
2.2-Slot |
| Resolution & Refresh |
HDMI 2.1 (Max): 7680 x 4320 @120 Hz
3 x DisplayPort 2.1 (Max): 7680 x 4320@60 Hz |
| Requirements |
10th Gen Intel® Core™ / AMD Ryzen™ 3000 Series Processors or newer with compatible motherboards supporting Resizable BAR / Smart Access Memory
PCI-Express® compliant MB with one x 16 PCIe slot
600 W or greater PSU with 1 x 8-pin PCIe power connector
8 GB of system memory minimum, 16GB recommended
Windows® 11 64-bit or Windows® 10 64-bit |
Backed by a 3 year Sparkle warranty.
