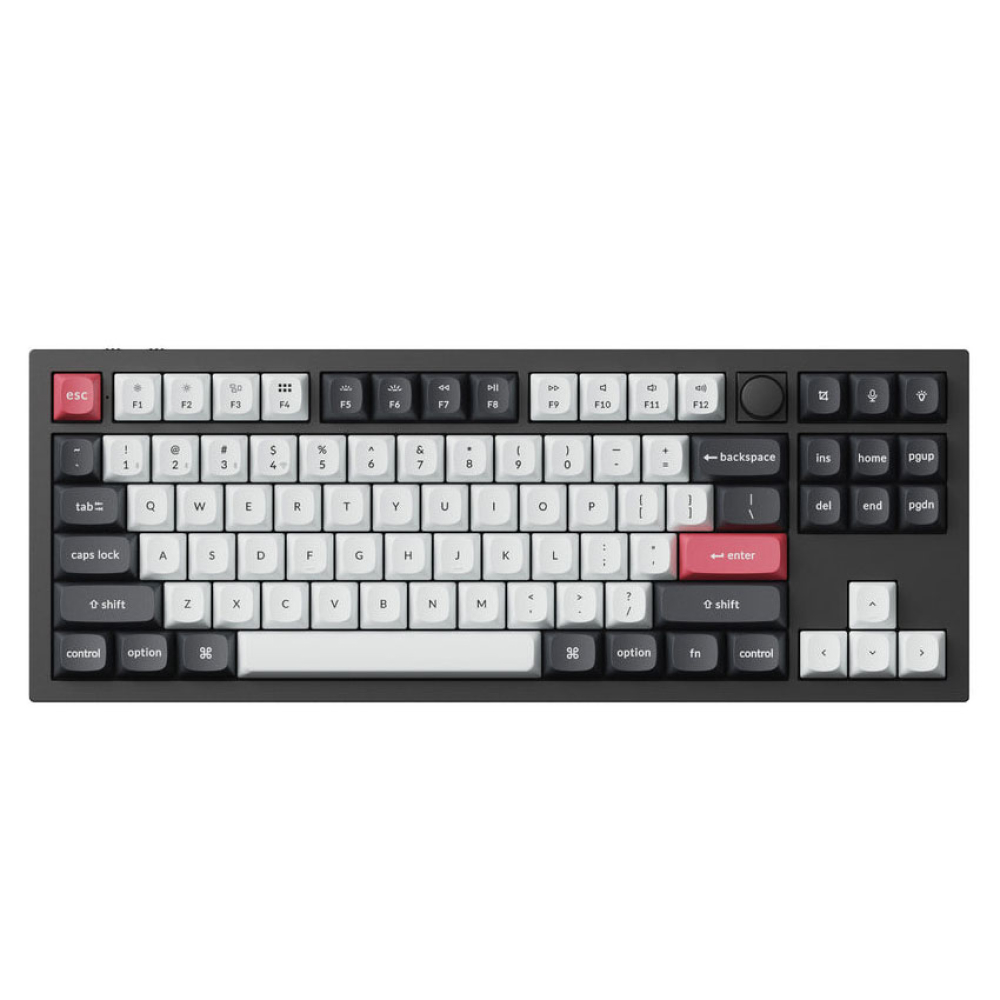

Keychron Q3 HE QMK Wireless Custom Keyboard Black

The Keychron Q3 HE QMK Wireless Custom Keyboard Black is an 80% knob keyboard that is ideal for keyboard customisation. It features an aluminium construction, dual connectivity via cable or wireless, 1000Hz polling rate, QMK/VIA support, south-facing RGB, hot-swappable capabilities, PBT keycaps, and is compatible with Mac and Windows.

Features

---

Keychron Q3 HE QMK Wireless Custom Keyboard

Introducing the Q3 HE, a wireless QMK custom keyboard with an 80% TKL layout equipped with Hall Effect Gateron 2.0 magnetic switches. These switches provide a distinct advantage due to their unique mechanism, offering faster feedback, dynamic rapid triggering, and adjustable actuation points, resulting in epic enhancements to the gaming experience tailored to your individual preferences.

In addition to the Hall Effect magnetic switches, the Q3 HE introduces a 2.4G connection mode with an impressive 1000 Hz polling rate, further ensuring a lightning-fast gaming experience. But that's not all; it also boasts premium features such as Bluetooth connectivity, a double-gasket design, an all-aluminium body, PBT keycaps, and more.

• Programmable Keys
• Gasket Mount Design
• Full Metal Body
• Mac & Windows
• Magnetic Switch
• 2.4 GHz & Bluetooth
• Hot-Swappable
• Connect up to 3 Devices
• OSA PBT Keycaps
• Adjustable Actuation Point

The Q3 HE is compatible exclusively with the Gateron Double-Rail Magnetic Switch. It does not support other magnetic switches such as the Gateron Magnetic Jade or Gateron KS-20 Magnetic switches.

The Fully Assembled Version Includes

• The keyboard PCB, the case, and the aluminium plate.
• Keycaps (included Mac & Windows keycaps).
• Adjustable-actuation-point Gateron 2.0 magnetic switches.

Gateron Double-Rail Magnetic Hall Effect Switches

With the first invented dual-rail structure, and the special pre-lubed, these switches ensure unparalleled stability and smoothness like never before.

Installed with an optimal magnetic sensor with a sensitivity of only 0.1 mm, it offers more precious feedback. You can customise actuation points and assign multiple actions to a single key based on the travel depth you personalised, enhancing gameplay and providing a customised typing sensation.

Adjustable Actuation Point

Customise each key with ultra-precise 0.1 mm sensitivity and adjustable actuation points ranging from 0.2 to 3.8 mm. Setting the actuation point to 0.8 mm or 1.0 mm shortens the trigger and increases sensitivity. The reset occurs once you release the key, ensuring a faster response.

Dynamic Rapid Trigger

Activate or deactivate keys based on travel distance rather than fixed points. They activate precisely upon pressing and deactivate upon letting go, allowing for immediate repetition of keystrokes in mod-motion. This enables you to execute a chain of actions in quick succession during gameplay.

Multiple Actions, One Keystroke

Assign four actions to a single key based on the depth of your press. For example, lightly press a key to walk forward in a game, and press deeper to run. Additionally, releasing the key also supports two-stage settings. This allows for smoother, personalised combinations that can give you an edge in competitive gaming.

Stage 1

• Press down: After reaching the trigger point, "C" keeps triggering

Stage 2

• Press to the bottom and hold: "C"+"CtrI" keep triggering

Stage 3

• Release: "H" keeps triggering

Stage 4

• Bounce back to the reset point: "F" triggers

Program with QMK & Launcher.

The open-source QMK firmware means endless possibilities for key remapping, macros, shortcuts, and more. With the Keychron Launcher web app, you can effortlessly remap keys, adjust actuation points, set the magnetic switches, create personalised macro commands, shortcuts, and key combinations for each key.

2.4 GHz & Bluetooth Connection

Experience peak gaming performance on the fly with the Q3 HE's 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the Q3 HE via Bluetooth 5.2 to three devices.

A Piece of Metal Art

The entire metal body is crafted from 6063 aluminium, a material known for its increased durability, stability, and premium feel. Not only is this aluminium more resistant to physical damage, wear, and tear, but it is also environmentally friendly and recyclable. These qualities ensure both aesthetic appeal and a commitment to sustainability.

Customise Every Part

To build a fully customisable keyboard, we designed every component to be able to assemble easily. Therefore, you can customise and adjust each component as you wish.

Double-Gasket Design

Silicone pads between the top and bottom cases reduce acoustic resonance, maintaining gasket flexibility and enhancing typing sound. The keyboard's bottom has an acoustic pad, improving sound quality with a slight impact on flexibility. Users seeking more flexibility can opt to remove the acoustic pad.

An Epic Core Inside the Keyboard

Engineered with a powerful chip (MCU) with 256K flash and QMK open-source firmware to provide more flexibility for developers. The polling rate is 1000 Hz out of the box in Type-C wired mode and 2.4 GHz mode, which greatly helps when competitively gaming.

Suitable for All Devices

Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Q3 HE comes with a system toggle and an additional set of customised keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

OSA Profile Double-Shot PBT Keycaps

It has a similar height to that of the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.

Hot-Swappable

Unlike mechanical switches, which depend on physical contact, Hall Effect magnetic switches use magnets to detect key presses. It is effortless to swap out the switch with compatible Hall Effect magnetic switches.

*The Q3 HE is compatible with the magnetic switches sold on the Keychron website only.

South-Facing RGB LED Lights

The south-facing RGB is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the user installs Cherry-profile alternative keycaps on their keyboard.

All New Screw-In PCB Stabilisers

The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilisers more stable and less wobbly. The big keys’ (space bar, shift, enter, delete) typing experience is now more stable and smooth.
