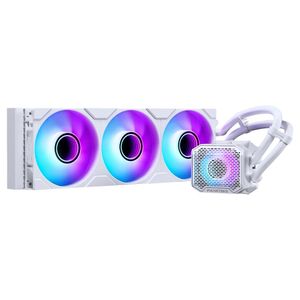

The Phanteks Glacier One 360 M25 G2 D-RGB AIO Liquid CPU Cooler White is a high-performance cooling solution that offers a smooth D-RGB lighting solution thanks to the M25 G2 fans. The M25 G2 fans can be daisy-chained and controlled through a single cable. Its large copper base and fin array makes it suitable for use with high-end CPUs, while its design allows for maximum clearance with motherboard and RAM components, and is compatible with Intel and AMD sockets.
Features
High Performance 360 Cooling
The Glacier One 360M25 G2 AIO Liquid CPU Cooler is a high-performance CPU cooling solution. Equipped with M25 G2 fans that can interconnect into a single frame, simplifying cable management, while RGB lighting and fan control are streamlined through one cable. The large copper base and fin array efficiently cool high-end CPUs, even under heavy loads.
With a design that maximises clearance for motherboard and RAM components, it also features a mesh cap cover with an integrated fan for extra cooling to surrounding VRMs. This makes it perfect for users seeking optimal cooling and a clean, sleek setup.
- High-performance cooling solution designed for gamers and PC enthusiasts.
- Equipped with M25 G2 fans that can interconnect into a single frame for easier cable management.
- RGB lighting and fan control managed through a single cable for a cleaner setup.
- A large copper base and fin array ensures efficient cooling for high-end CPUs.
- Maximum clearance design for compatibility with motherboard and RAM components.
- Mesh AIO cap cover with integrated fan cools surrounding VRMs and other critical parts.
- Compatible with Intel LGA 1700, 1200, 115x, 2011, 2011-3, 2066 and AMD AM4, AM5, sTRX4, TR34, SP3, sWRX8 sockets
Specifications
General Data
| Model Number |
PH-GO360M25G2_DWT02 |
| Colour |
White |
| Product Type |
AIO Liquid CPU cooler |
| Fan Dimension |
397 x 120 x 25 mm |
| Frame Material |
PBT (Polybutylene Terephthalate) |
| Blade Material |
PC (Polycarbonate) |
| Material |
Aluminium |
| Fan Connector |
4-Pin PWM |
| Fan Cable Length |
120 mm Daisy-chain |
| Bearing Type |
Hydraulic Bearing |
| Max. Airflow |
72.72 CFM |
| Max. Static Pressure |
2.51 mm H2O |
| Max. Sound Level |
35.13 dBA |
| Motor Type |
PWM, 2-Phase/4-poles |
| Speed Range |
350-2000±10 % RPM |
| Motor Voltage |
DC 12 V, 7-13.2 V |
| Motor Ma x Current |
0.23 A |
| Motor Power |
2.76 W |
| Motor Safety Protection |
Polarity Protection |
| MTTF |
40.000 hours at 50°C |
| Socket Compatibility |
Intel Socket LGA 115x, 1200, 1700, 2011, 2011-3, 2066
AMD Socket AM4, AM5, SP3, sTRX4, TR4, sWRX8 |
Pump Unit
| Dimension |
94.1 x 80.5 x 70.1 mm |
| Material |
ABS, Steel, Copper |
| Motor Speed |
3100 RPM ± 10% (100% Duty Cycle) |
| Power |
12V | 0.38A - 0.45A | 4.56W - 5.4W |
| Pump DC Cable |
400 mm |
| Noise |
20 dBA |
| MTTF |
100.000 hours at 50°C |
Pump Unit Fan
| Fan & D-RGB Connector |
LINQ6 |
| Fan & D-RGB Cable Length |
530mm + 105mm Daisy-Chain |
| Bearing Type |
Ceramic Bearing |
| D-RGB LED Quantity |
8 |
| D-RGB LED Voltage |
DC 5 V |
| D-RGB LED Max. Current |
0.35 A |
Tubes
| Tubing Length |
400 mm |
| Tubing Outside Diameter |
10.5 mm |
| Material |
CIIR rubber with black braided sleeves |
| Tube Clips |
3x |
| Fittings |
Rotary type |
What's Included
| Glacier One 360 M25 Gen2 |
1 x PH-GO360M25G2_02 AIO Cooler (pre-applied thermal paste)
1 x Mounting kit
3 x Fan PH-F120M25_G2_01 (pre-assembly)
2 x Right corner Screw Cover
2 x Left corner Screw Cover
4 x Middle Screw Cover
1 x 6 pin extension cable 500mm
1 x 6 pin adapter cable 250mm
1 x SATA to 2-Pin pump adapter
3 x Tube Clip
1 x PH-NDC Thermal paste
12 x 30 mm 6-32 UNC Radiator Screws
12 x 6 mm 6-32 UNC Radiator Screws
1 x Installation Guide |
Backed by a 5 year Phanteks warranty.
