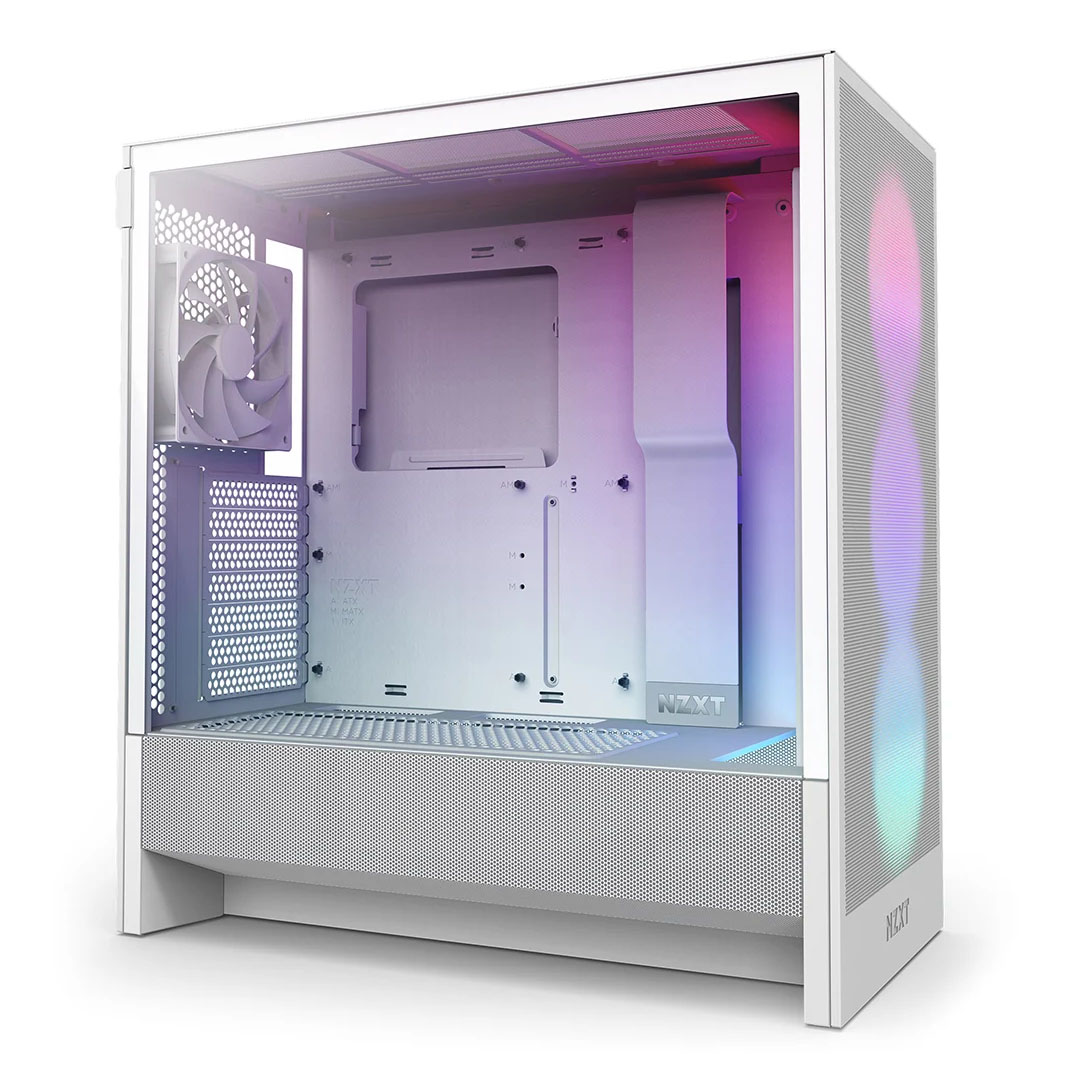

The NZXT H5 Flow RGB Mid-Tower ATX Case White 2024 Edition features a tempered glass side panel, perforated PSU shroud, and ultra-fine mesh panels that enhance airflow, supports ATX, E-ATX, Micro-ATX, and Mini-ITX motherboards, 2 x pre-installed F Series fans (1 x F360 RGB Core at the front, 1 x F120Q at the rear), radiator support at the front (up to 360mm), top (up to 240mm), and supports a graphics card of up to 410mm in length.
Features
H5 Flow Compact ATX Mid-Tower Airflow Case with RGB Fans
The H5 Flow RGB boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support-all in a compact mid-tower form factor.
- The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included).
- Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential.
- Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust.
- Equipped with a front-mounted F360 RGB Core (CV) single-frame fan and rear-mounted F120Q (CV) fan for strong out-of-the-box cooling and lighting.
- Effortlessly route and conceal cables using the wide channels, hooks, and straps.
H5 Flow RGB
Compact ATX mid-tower chassis with high airflow, optimal GPU cooling, and large radiator support.
More Air to the GPU
Mesh PSU shroud maximises air intake from two 120mm bottom-mounted fans (not included).
Fits Large Radiators
Supports a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling setups.
Optimised for Airflow
Ultra-fine mesh panels facilitate exceptional airflow and help filter pesky dust particles.
Pre-Installed Fans*
Front-mounted F360 RGB Core fan and rear F120Q fan for out-of-the-box cooling and lighting.
*Case Version (3-pin DC)
Easy Cable Management
Effortlessly route and conceal cables using the wide channels, hooks, and straps.
Tool-Less Access
Easily open up the front, side, and top panels without any tools.
Strong and Sleek
Crafted from thick steel and tempered glass for long-lasting quality.
Specifications
General Data
| Model Number |
CC-H52FW-R1 |
| Colour |
White |
| Height (with Feet) |
465 mm / 18.31 in |
| Width |
225 mm / 8.86 in |
| Depth |
430 mm / 16.93 in |
| Weight |
7.63 kg / 16.82 lb |
| Motherboard Support |
E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX |
| Enclosure Type |
Mid-Tower |
| Case Material |
SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black) |
| Expansion Slots |
Standard - 7 |
| Warranty |
2 Years |
| What's Included |
1 x H5 Flow RGB
1 x F360 RGB Core (CV)
1 x F120Q (CV)
1 x Installation accessories
1 x User guide |
Compatibility & Clearance
| CPU Cooler Height |
Up to 170 mm |
| GPU Length |
Up to 410 mm |
| PSU Length |
Up to 200 mm |
| Cable Management |
Up to 28.7 mm |
| Top Radiator |
Up to 240 mm (280 mm with low-profile memory) |
| Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness |
Up to 55 mm |
Front Ports
| USB 3.2 Type-A |
1 |
| USB 3.2 Type-C |
1 |
| Headset Audio Jack |
1 |
Drive Bays
Fan Support
| Front |
3 x 120 mm / 2 x 140 mm (1 x F360 RGB Core Case Version included) |
| Top |
2 x 120 mm / 2 x 140 mm |
| Bottom |
2 x 120 mm |
| Rear |
1 x 120 mm (1 x F120Q Case Version included) |
Radiator Support
| Front |
Up to 360 mm |
| Top |
Up to 240 mm (280mm with low-profile memory only) |
Fan
| Model |
F360 RGB Core (Case Version) |
| Speed |
1,700 ± 200 RPM |
| Airflow |
50.1 CFM |
| Static |
1.27 mm-H₂O |
| Noise |
23.3 dBA |
| Fan Connector |
3-pin |
Backed by a 1 year NZXT warranty.
