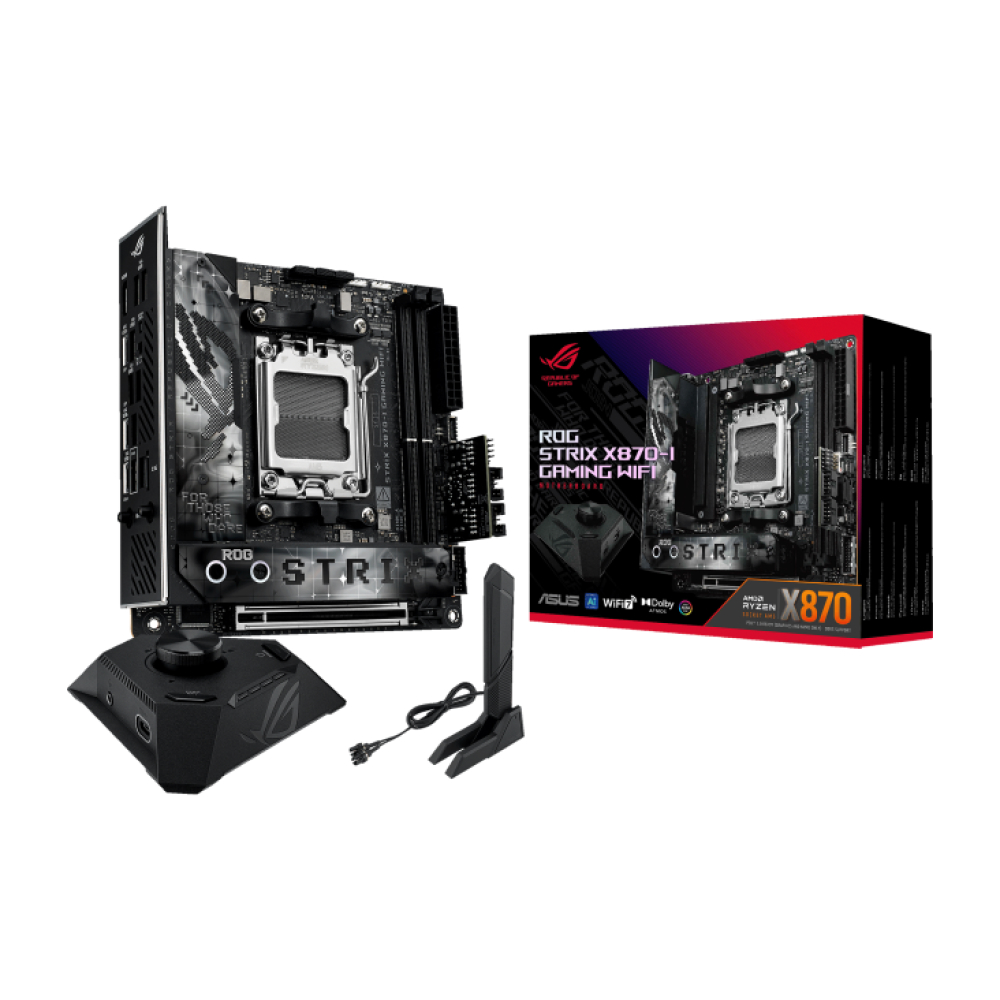

The ASUS ROG Strix X870-I Gaming WiFi ITX Motherboard supports AMD Ryzen™ 9000 & 8000 & 7000 Series desktop processors and AM5 CPU sockets, features up to 2 x DDR5 memory slots, PCI-E 5.0 and 4.0 compatible expansion slots, 2 x M.2 slots, 2 x SATA ports (6Gb/s), 10 x rear USB ports, 3 x front panel USB headers, Intel 2.5Gb Ethernet, ASUS LANGuard, WiFi 7, Bluetooth 5.4, ROG Strix Hive II Audio, and a mini-ITX form factor.
Features
ROG Strix X870-I Gaming WiFi
AMD X870 Mini-ITX motherboard with 10+2+1 power stages, Dynamic OC Switcher, Core Flex, DDR5 slots with AEMP, WiFi 7 with ASUS WiFi Q-Antenna, two M.2 slots, PCIe® 5.0 x16 SafeSlot with PCIe® Slot Q-Release Slim and full support for next-gen graphics cards, two USB4® ports, ROG Strix Hive II, AI Overclocking, AI Cooling II, AI Networking II, and Aura Sync RGB lighting.
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AMD AM5 Socket: Ready for AMD Ryzen™ 9000, 8000 and 7000 series desktop processors
- Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking II and AEMP to simplify setup and improve performance
- ROG Strix Overclocking technologies: Dynamic OC Switcher, Core Flex, Asynchronous Clock and PBO Enhancement
- Robust Power Solution: 10+2+1 power solution rated for 110A per stage with ProCool II power connectors
- Optimised Thermal Design: Massive heatsinks with integrated I/O cover and high-conductivity thermal pads, connected with an L-shaped backplate
- Latest M.2 Support: One onboard PCIe® 5.0 M.2 slot and one PCIe 4.0 M.2 slots, all with substantial cooling solutions
- Abundant Connectivity: Dual USB4® Type-C ports, USB 10Gbps Type-C® front-panel connector, seven additional USB 10Gbps ports, PCIe® 5.0 x16 SafeSlot with full support for next-gen graphics cards, HDMI™ port
- High-Performance Networking: On-board WiFi 7 (802.11be) with Intel® 2.5 Gb Ethernet
- DIY Friendly Design: Bundled ROG FPS Card and ROG Strix Hive II, PCIe Slot Q-Release Slim, M.2 Q-Latch, Q-Antenna, Q-Dashboard, Q-LED, BIOS FlashBack™ button, Clear CMOS button and pre-mounted I/O shield
- Immersive Audio: ROG Strix Hive II external audio solution with ESS™ SABRE 9260Q DAC, along with Dolby Atmos®
- Unmatched Personalisation: ASUS-exclusive Aura Sync RGB lighting, including two addressable Gen 2 headers
- Renowned Software: ASUS DriverHub, ASUS GlideX, HWiNFO, Norton 360 for Gamers (60-day free trial), bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard.
Specifications
| Model Number |
ROG-STRIX-X870-I-GAMING-WIFI |
| CPU |
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
* Refer to https://www.asus.com/support/download-center/ for CPU support list. |
| Chipset |
AMD X870 |
| Memory |
2 x DIMM slots, max. 96 GB, DDR5
Supports up to
8400+MT/s(OC) with Ryzen™ 9000 Series Processors,
8600+MT/s(OC) with Ryzen™ 8000 Series Processors,
8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
ECC and Non-ECC Un-buffered DIMM*"
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory
configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics |
1 x HDMI™ port**
2 x USB4® (40 Gbps) ports support USB Type-C® display outputs***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60 Hz as specified in HDMI 2.1.
*** Supports max. 4K@60 Hz as specified in DisplayPort 1.4a
**** VGA resolution support depends on processors' or graphic cards' resolution. |
| Expansion Slots |
AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 / 4.0 / 3.0 x 16 slot(s)
To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
| Storage |
Supports 2 x M.2 Slots and 2 x SATA 6 Gb/s Ports*
AMD Ryzen™ 7000 & 8000 & 9000 Series Desktop Processors*
M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x 4 mode)
AMD X870 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x 4)
2 x SATA 6 Gb/s ports***
* AMD RAIDXpert2 Technology supports both PCIe RAID 0 / 1 / 10 and SATA RAID 0 / 1 / 10, and AMD Ryzen™ 9000 Series Desktop
Processors additionally support RAID 5.
*** Install ROG FPS Card to support 2 x SATA 6 Gb/s ports. |
| Ethernet |
1 x Intel® 2.5 Gb Ethernet
ASUS LANGuard |
| Wireless & Bluetooth |
Wi-Fi 7*
2 x 2 Wi-Fi 7 (802.11be)
Supports 2.4 / 5 / 6 GHz frequency band**
Support Wi-Fi 7 320 MHz bandwidth, up to 6.5 Gbps transfer rate.
Bluetooth® v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2 / 22H2 / 23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6 GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications." |
| USB |
Rear USB (Total 10 Ports)
2 x USB4® (40 Gbps) port(s)(2 x USB Type-C®)
5 x USB 10 Gbps port(s) (4 x Type-A + 1 x USB Type-C®)
3 x USB 2.0 port(s) (3 x Type-A)
Front USB (Total 3 Ports)
1 x USB 10 Gbps connector (supports USB Type-C®)
1 x USB 5 Gbps header supports 2 additional USB 5 Gbps ports
* USB Type-C® power delivery output: max. 5 V / 3 A
ROG Strix Hive II(Total 2 Ports)
2 x USB 10 Gbps port ( 1 x Type-A + 1 x USB Type-C®)
ROG FPS Card (Total 3 ports)
2 x USB 2.0 headers additional 3 USB 2.0 ports |
| Audio |
ROG Strix Hive II Audio Features
ROG Hyper-Grounding Technology
E3 DAC
Silver-plated audio jacks
Dedicated audio PCB layers |
| Back Panel I/O Ports |
2 x USB4® (40 Gbps)(2 x USB Type-C®)
5 x USB 10 Gbps port(s) (4 x Type-A + 1 x USB Type-C®, 1 port supports ROG Strix Hive II)
3 x USB 2.0 port(s) (2 x Type-A)
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5 Gb Ethernet port
1 x BIOS FlashBack™ button
1 x Clear CMOS button |
| Internal I/O Connectors |
Fan and Cooling Related
1 x 4-pin CPU Fan header(s)
1 x 4-pin AIO Pump header(s)
1 x 4-pin Chassis Fan header(s)
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12 V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
USB
1 x USB 10 Gbps connector (supports USB Type-C® )
1 x USB 5 Gbps header support(s) 2
additional USB 5 Gbps ports
Miscellaneous
2 x Addressable Gen 2 headers
1 x 2-pin Power Button header
1 x Thermal Sensor header
2 x USB Type-C® connectors to install ROG FPS card
ROG FPS-II card
2 x SATA 6 Gb/s ports
1 x CPU Over Voltage jumper
1 x Front Panel header
1 x Alteration PCIe Mode switch
2 x USB 2.0 headers support 3
additional USB 2.0 ports |
| Special Features |
ASUS Q-Design
M.2 Q-Latch
PCIe Slot Q-Release Slim (with PCIe SafeSlot)
Q-Antenna
Q-Code
Q-DIMM
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
Q-Slot
ASUS Thermal Solution
M.2 heatsink
Aluminium backplate
ASUS EZ DIY
BIOS FlashBack™ button
BIOS FlashBack™ LED
Clear CMOS button
ProCool II
Pre-mounted I/O shield
SafeSlot
SafeDIMM
Aura Sync
Addressable Gen 2 header(s)
ROG Strix Hive II
1 x USB Type-C® connects to motherboard
2 x USB 10 Gbps port ( 1 x Type-A + 1 x USB Type-C®)
1 x Headphone jack with mic in
1 x Power button
1 x FlexKey button
1 x Volume control knob with mute button Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) |
| Software Features |
ROG Exclusive Software
ROG CPU-Z
Dolby Atmos
ASUS Exclusive Software
Armoury Crate
AIDA64 (60 days free trial)
Aura Creator
Aura Sync
Fan Xpert 4 (with AI Cooling II)
GameFirst
HWiNFO
Power Saving
ASUS Driver Hub
ASUS GlideX
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI
BIOS EZ Mode
ASUS
MyHotkey
FlexKey
Dynamic OC Switcher |
| BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability |
WOL by PME, PXE |
| Accessories |
Cables
1 x Panel cable
1 x ROG USB2.0 splitter cable
2 x SATA 6Gb/s cables
ROG FPS Card
1 x ROG FPS Card
ROG Strix Hive II
1 x ROG Strix Hive II
1 x USB Type-C® power connection cable
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package(s)
1 x ROG key chain
1 x ROG Strix stickers
1 x M.2 rubber package(s)
Documentation
1 x Quick start guide |
| Operating System |
Windows® 11 64-bit |
| Form Factor |
Mini-ITX Form Factor
6.7 inch x 6.7 inch (17 cm x 17 cm) |
Backed by a 3 year ASUS warranty.
