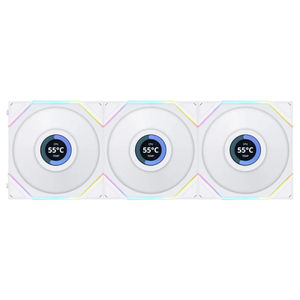

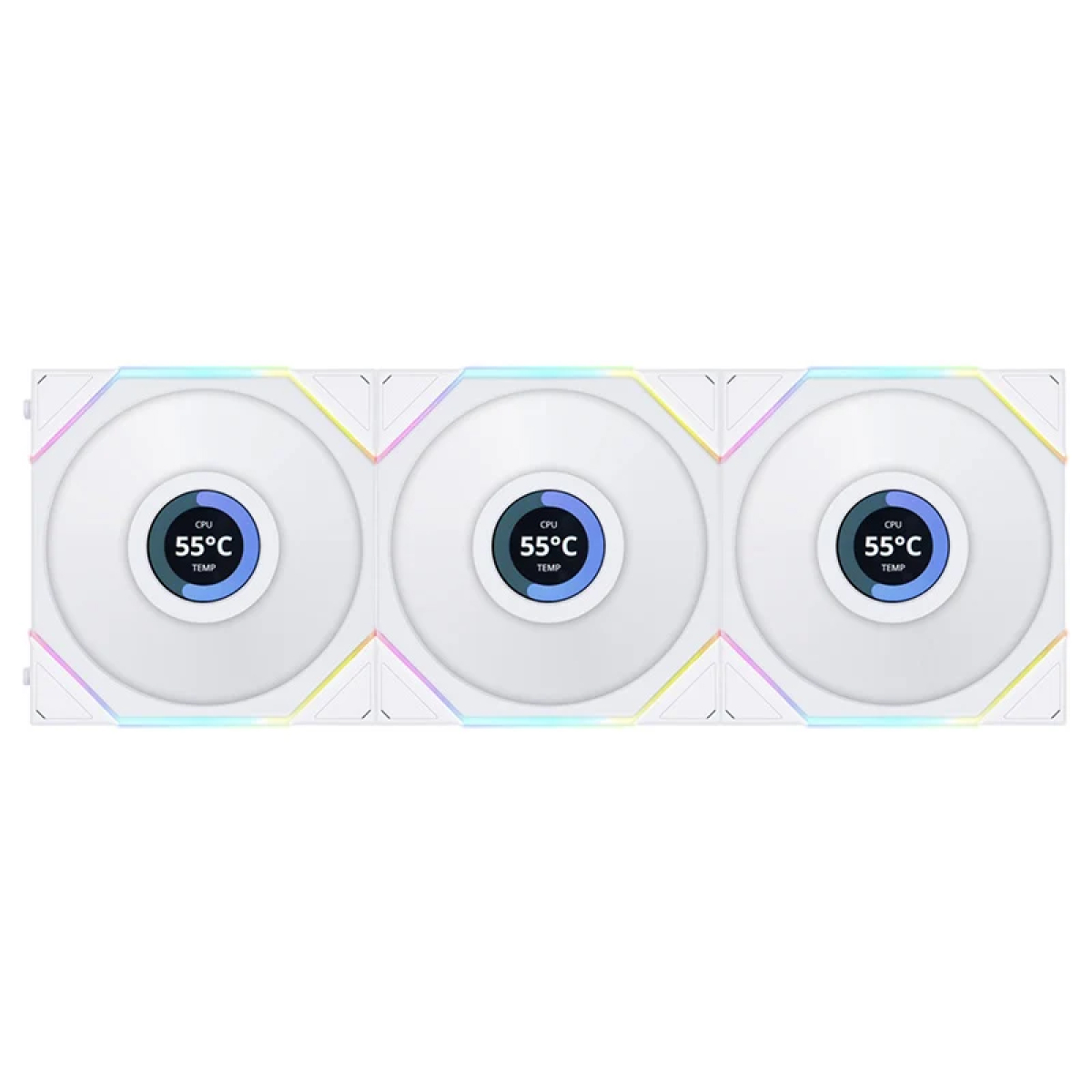

The Lian Li TLLCD 120 Uni Fan ARGB PWM 120mm Fan features a slide-in daisy-chain style mechanism allowing you to connect multiple fans seamlessly, fluid dynamic bearing, 1.6in LCD screen that supports SRGB 24-bit full colour, enlarged infinity mirror ARGB design with dual zone lighting effects, controllable fan speed range of 350 - 1900 RPM, and can be controlled via the L-Connect software. Comes in a pack of 3.
Features
UNI Fan TL LCD
- 1.6” LCD Screen with 400 x 400 resolution.
- Supports GIF, MP4, JPG, and PNG files.
- Suitable as a PC case with airflow and noise optimisation.
- Comes with Lian Li exclusive flow-through animations through L-Connect 3.
- FDB bearing that provides stability, durability, and longevity.
- Enlarged infinity mirror around the frame with a longer light guide for a unified daisy-chained look.
- Features two light zones for increased lighting customisability.
- UNIFAN interlocking system for ease of cable management.
- LED lighting and fan speed controller shared with UNIFAN TL.
- Complete software control with L-Connect 3.
- The controller is required to use the fans.
UNI Fan TL LCD Visualised Breeze, Elevated Style
- Slide In Daisy-Chain Style
- 1.6” LCD Screen
- Stable Monitor
- Enlarged Infinity Mirror
- Dual Zone Lighting Effects
- L-Connect 3 Software
Available In Two Colours/ Two Sizes/ Two Orientations
Elevate your PC setup with UNI FAN TL LCD black and white fans, available in 120mm and 140mm sizes with normal and reverse blades.
Meet all kinds of configuration needs with our full lineup.
Empower with Customisable Display
The world’s 1st PC case fan with a LCD screen, which can be personalised and controlled using L-Connect 3.
- 1.6" LCD Screen
- 400 x 400 Resolution
- 500 (TYP) nits Brightness
- IPS Type Display
- SRGB-24-bit Full Colour
Performance Detail at a Glance
Monitor the temperature and loading of your CPU and GPU, as well as the fan speed, instantly with built-in hardware monitor dashboards on the screen.
Note: The more sensors used, the higher the CPU load will be. We suggest you to keep sensor display at a maximum of 3.
Unique Style
Elevate your system’s style by uploading your own personalised MP4 / GIF / JPG / PNG.
Next Generation of UNI Fan
Building on the design success of the UNI FAN series interlocking system, the UNI FAN TL series takes clutter-free setups to the next level.
1. Durable Daisy-Chain Solution
Experience a hassle-free setup with the slide-in daisy-chaining mechanism, securely holding the fans in place and ensuring a snug fit for easy configuration.
2. Seamless Connection
A single cable can connect a group of up to 3 TL LCD fans to a port on the controller, which supports a maximum of 9 TL LCD fans per controller (up to 16 TL+TL LCD fans in total).
L-Connect 3 supports a maximum of 12 TL LCD fans, with an option to add a second controller if needed.
Please note that some motherboards have a limitation of supporting no more than 7 TL LCD fans. Refer to the list of tested motherboards for compatibility.
Note: The controller cable is only applicable on the pin side of the fan, do not install it the other way.
3. Well-Adapted for all Configurations
The interlocking key at the end of TL LCD fans is removable for enhanced compatibility and less interference with other components.
Stable Operation
UNI FAN TL LCD is engineered for stable fan blade operation, ensuring efficiency at a low noise level.
1. METAL BEARING SHELL - To securely hold the impeller to the shaft
2. MAGNETIC RUBBER RING - To provide extra support for fan operation
3. STATOR - To provide a rotating magnetic field that generates momentum
4. BRAZZ NUT - To Prevent oil leaks
5. FLUID DYNAMIC BEARING (FDB) - To effectively reduce the internal friction for improved durability
6. SHAFT AND COPPER BASE - To ensure fan blade stability during operation
7. THICKER FAN FRAME - 28mm thick fan frame helps deliver more airflow and static pressure
8. RUBBER PADS - To reduce vibrations and maintain extremely low noise levels
Breeze Your System
Redefining PC cooling experience with a fan that doesn’t compromise on thermal control, all while offering a personalised screen for a touch of individuality.
Customisable Fan Speed
Able to set different fan speeds for each fan cluster to optimise different scenarios of use providing flexibility for radiator or case fan needs with L-Connect 3.
Sophisticated Continuous RGB Lighting
Each UNI FAN TL fan has 26 LEDs with an elegant side diffuser on the 2 sides of the fan frame that wraps around the edges of the anti-vibration pad.
Dazzle with Infinity Mirror
Illuminate your setup with the UNI FAN TL’s enlarged infinity mirror (30% larger than UNI FAN SL-INF on the side) on both sides of the frame, showcasing clear and 0.7mm gap multi-layer lighting effects.
Individual Lighting Effects
Easily customise different lighting effects on the two sides of the LED strips using L-Connect 3 for a unique setup. You can also sync your TL fans and apply the same lighting effect you like across all of them.
Smooth Appearance
Cover the screws with anti-vibrate rubber pads for a seamless and uninterrupted aesthetic appeal.
Seamless Software
L-Connect 3 offers complete control over the UNI FAN TL series, including the lighting effects, fan speed, and LCD screen.
Two Fans, One Controller
UNI FAN TL and TL LCD share the same controller, enabling the connection of up to 16 TL and TL LCD fans simultaneously, with a maximum of 9 TL LCD fans.
Note: TL and TL LCD share the same controller but use different controller cables. Do not mix the controller cables.
Fan Group Signal
Each port supports a maximum of 10 TL fans or 3 TL LCD fans
Note: The 1st port doesn’t support TL LCD.
1. Power PCIe Cable
Power up the connected fans
2. USB Cable
Plug directly into a motherboard 9-pin USB header
Note: Do not use a splitter; plug directly for a stable signal
3. 5V ARGB / 4 PIN PWM Cable
Required for motherboard sync function
Note: The controller is available separately or in a triple pack only. UNI FAN TL series fans without the controller will not be functional.
Backed by a 3 year Lian Li warranty.
