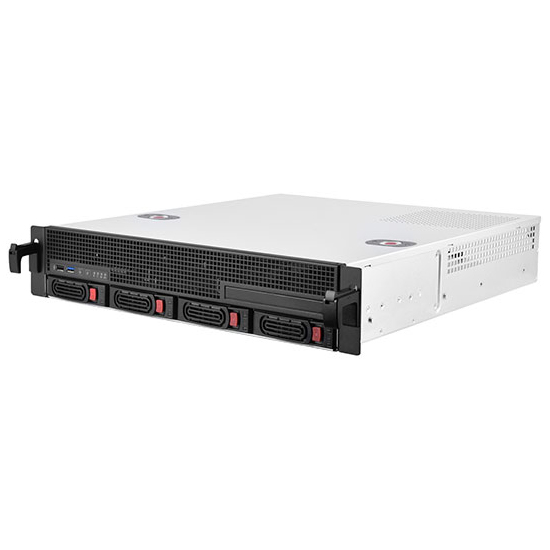

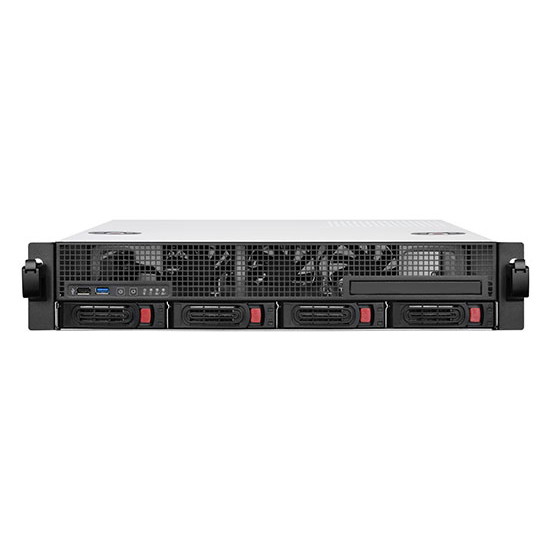

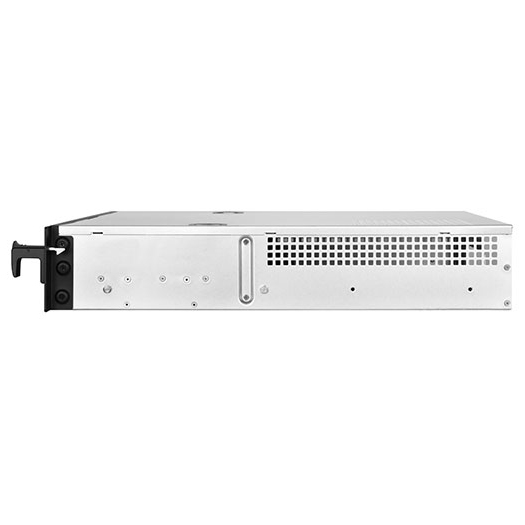

SilverStone RM21-304 2U Server Rackmount Case

SST-RM21-304 | SilverStone
$479
Stock at Supplier We do not have this item in our warehouse, but stock is either already on its way or is generally available from the supplier.
Add to wishlist
Buy now, pay later!
Overview Specifications Warranty & Returns

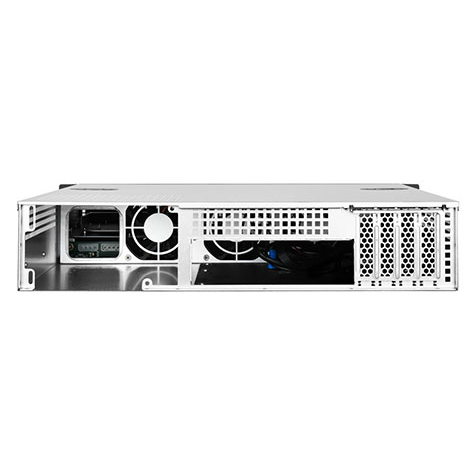

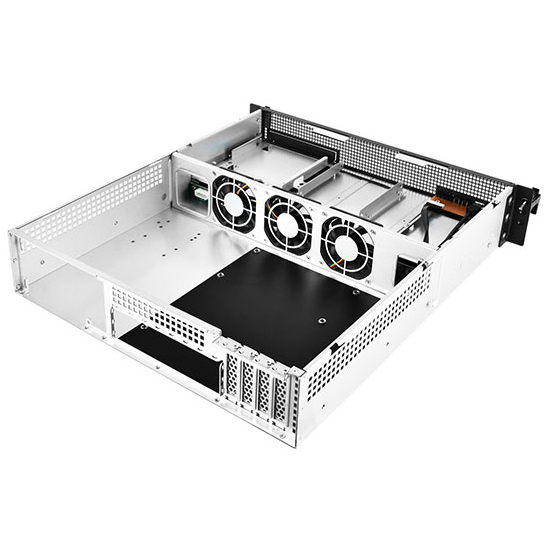

The SilverStone RM21-304 2U Server Rackmount Case is designed to support micro ATX motherboards, supports 4 x 2.5in/3.5in SAS/SATA HDD/SDDs, backplane support for 4 port SAS/SATA drives and 12 Gb/s mini-SAS SFF-8087, includes 3 x 80 x 15mm PWM fans, supports 4 x low profile PCIe slots, independent drive status LED and an auto lock handle design.

Features

Test Environment

  • RM21-304 backplane
  • ECS05 SAS 12G HBA
  • Toshiba PX02SMF040 SAS 12G SSD
  • CPS06 – Mini-SAS HD(SFF8643) to Mini-SAS(SFF8087) cable

Specifications

Model Number SST-RM21-304
Colour Black
Drive Bay - External 3.5" or 2.5" HDD / SSD Hot-Swap x 4
Drive Bay - Internal 3.5" x 1, 2.5" x 1 (up to 15 mm), Slim Optical x 1 (up to 12.7 mm)
Expansion Slot Low Profile PCI / PCIe x 4
Power Supply 2U Single or 2U Redundant / PS2 (ATX) up to 220 mm Deep and 86.3 mm Height (Not Included)
Dimension 430 mm (W) x 88.5 mm (H) x 480 mm (D) 18.3 Litres

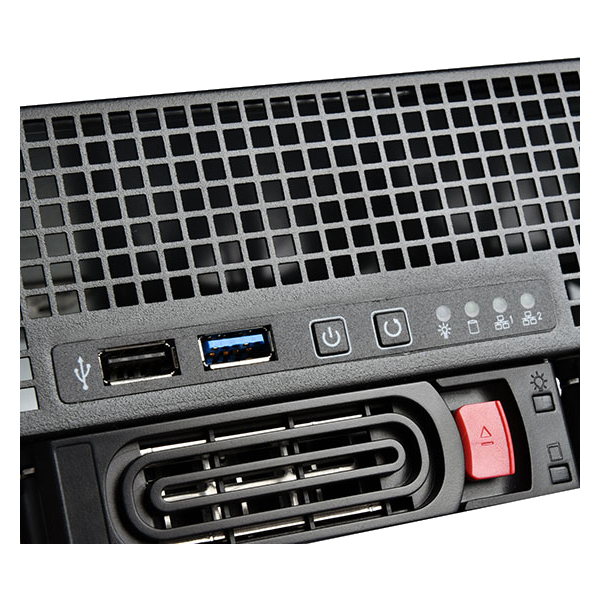

Front Buttons Power On / Off, System Reset
HDD Backplane 4 Ports SAS / SATA to Mini-SAS SFF-8087 x 1
Main Metal Thickness 1 mm
Motherboard Micro ATX (9.6" x 9.6"), Mini-ITX (6.7” x 6.7”)
Power Connector on HDD Backplane 4-Pin Peripheral x 2
Front I/O Port USB 2.0 x 1, USB 3.1 Gen 1 Type-A x 1
Net Weight 6.3 kg
Chassis Form Factor 2U
Indicators - Chassis Power LED x 1: Blue
HDD Access x 1: Green
LAN LED x 2: Green
Indicators - HDD Tray HDD Power LED x 8: Yellow
HDD Access x 8: Blinking Green
HDD Interface SAS-1 / SAS-2 / SAS-3
SATA-1 / SATA-2 / SATA-3
Limitation of CPU Cooler 68 mm
Backed by a 1 year SilverStone warranty.
