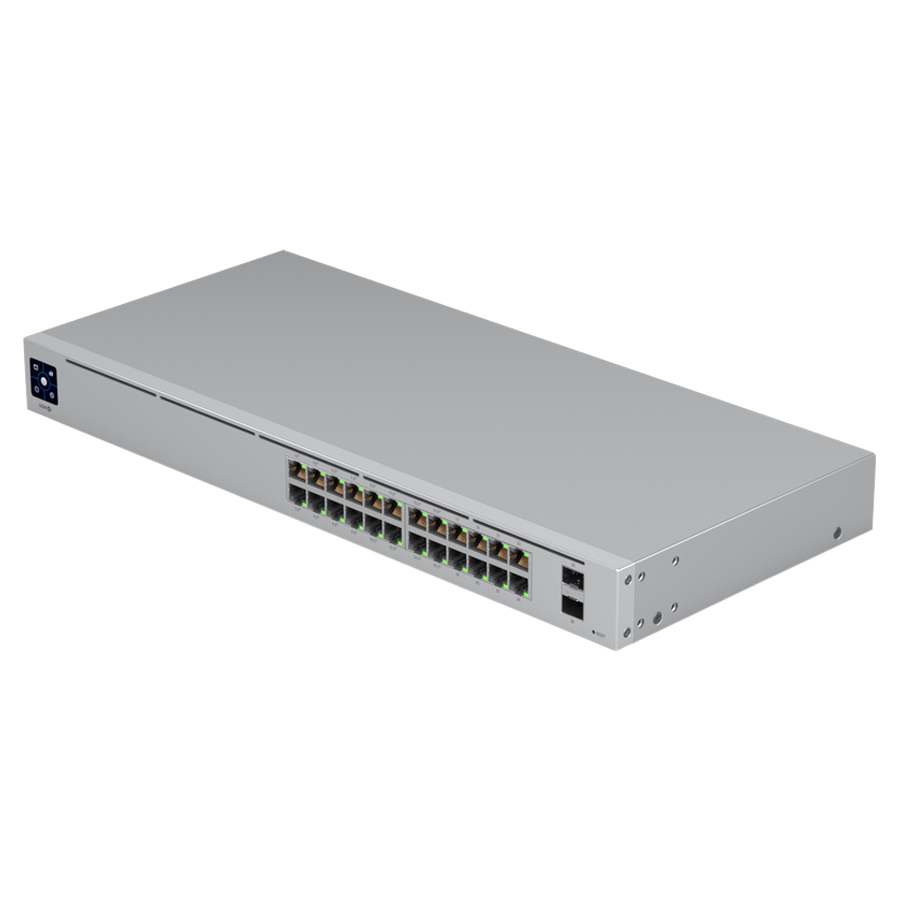

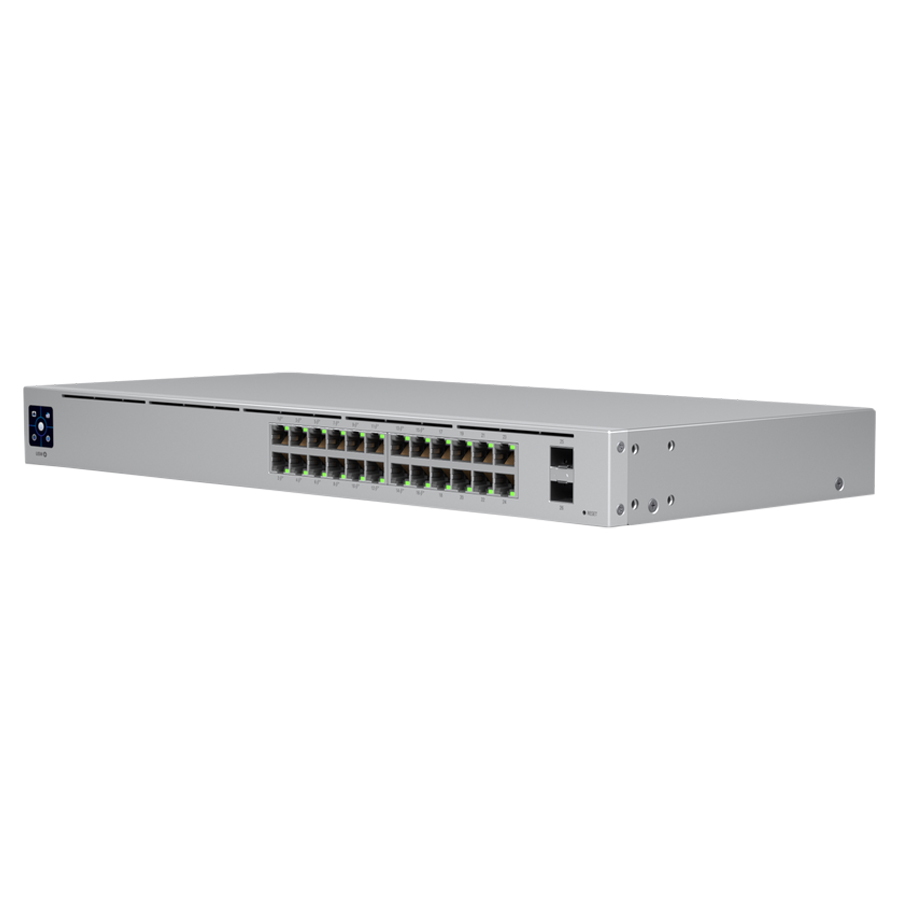

The UniFi Gen2 24 Port Switch (USW-24-POE) is a configurable Gigabit Layer 2 switch with twenty-four Gigabit Ethernet ports. It features a 1.3" touch LCM to display status information, sixteen auto-sensing 802.3at PoE+ ports, two SFP ports and can be managed and configured with the UniFi mobile app.
Features
Standard 24 PoE (95W)
A 24-port, Layer 2 PoE switch with a fanless cooling system.
- (16) GbE PoE+, (8) GbE ports
- (2) 1G SFP ports
- 95W total PoE availability
- Fanless, silent cooling
Build Features

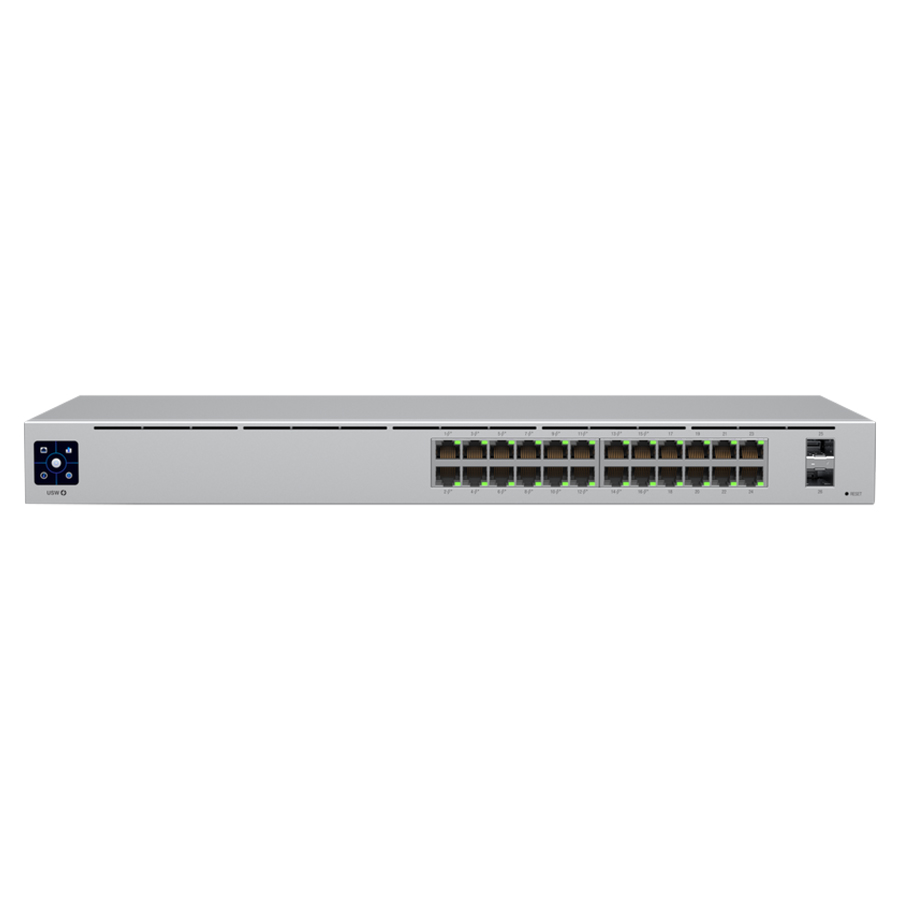

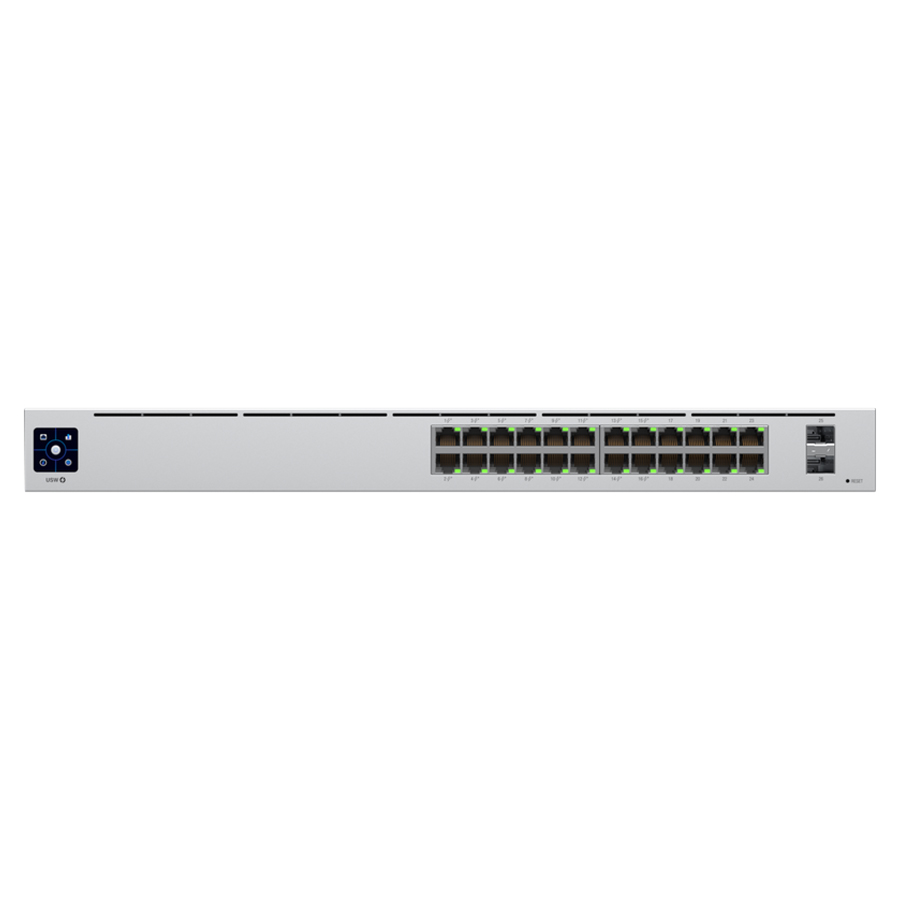

Front

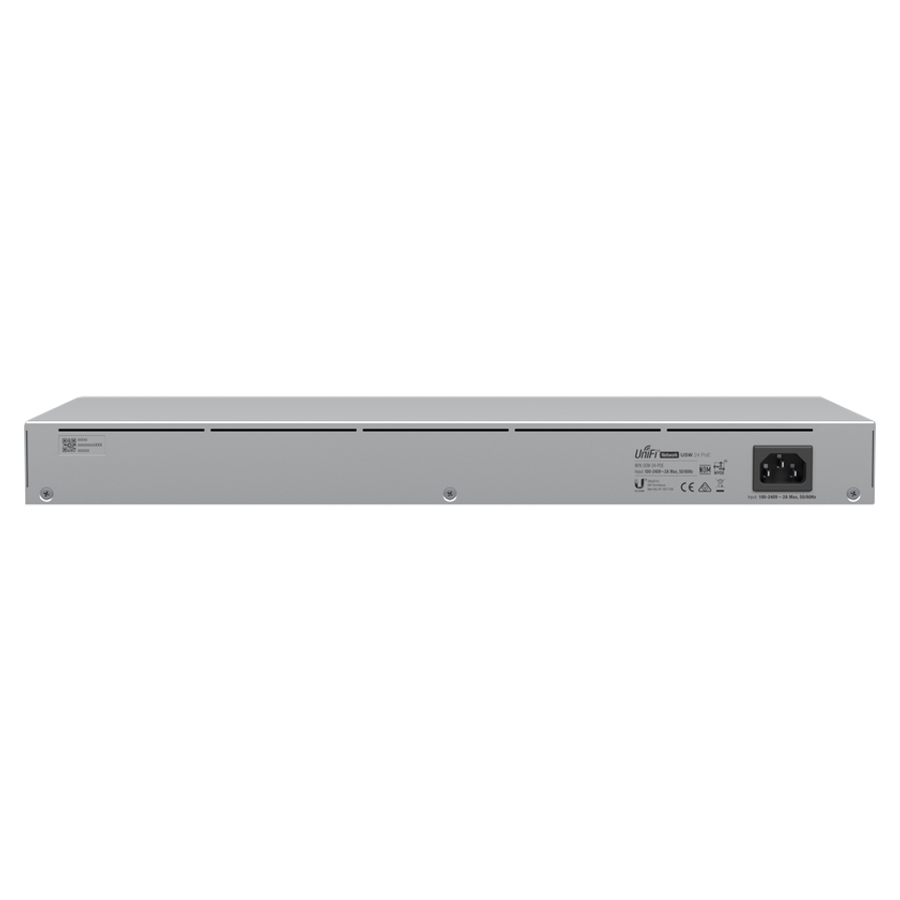

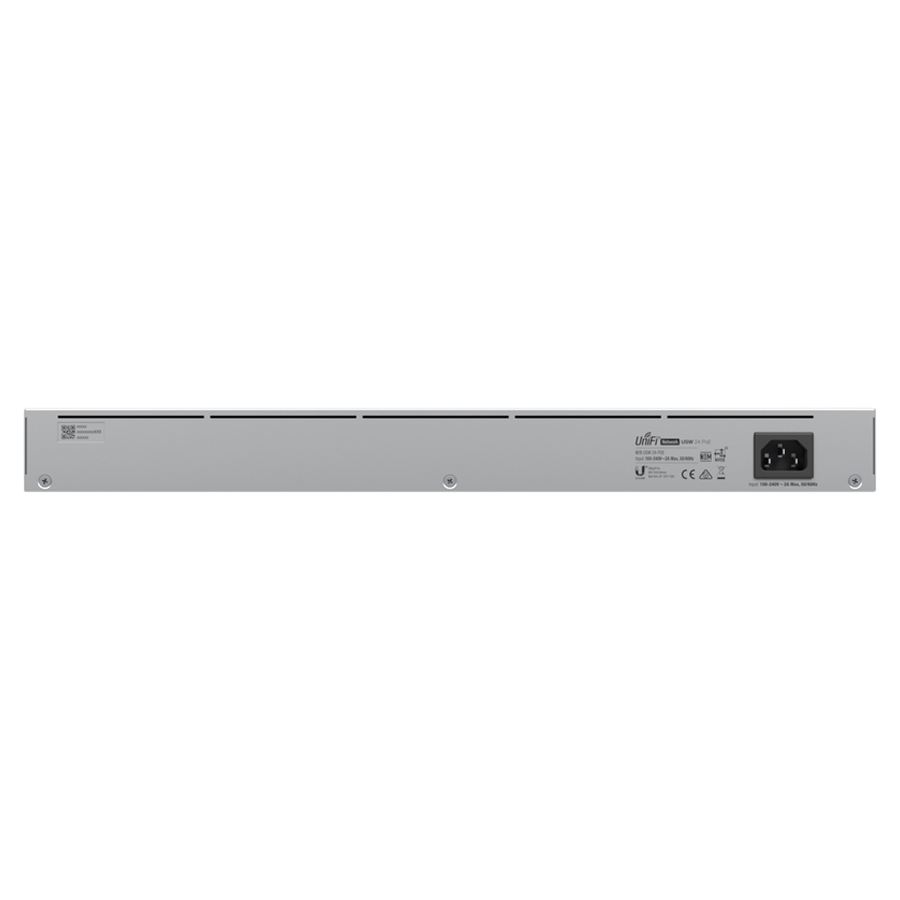

Back
Dimension
Deployment
Specifications
General Data
| Model Number |
USW-24-POE |
| Dimensions |
442 x 200 x 44 mm (17.4 x 7.9 x 1.7") |
| Weight |
Without mounting brackets: 3 kg (6.6 lb)
With mounting brackets: 3.1 kg (6.8 lb) |
| Enclosure Material |
SGCC steel |
LEDs
| System |
Status |
| Ethernet |
PoE
Speed/link/activity |
| SFP |
Link/activity |
Application Requirements
| UniFi Network |
Version 7.2.94 and later |
Switching Features
| Layer 2 Features |
IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs |
Hardware
| Management Interface |
Ethernet In-Band |
| Networking Interface |
(24) GbE RJ45 ports
(2) 1G SFP ports |
| PoE interface |
(16) PoE/PoE+ (Pins 1, 2+; 3, 6-) |
| Total Non-Blocking Throughput |
26 Gbps |
| Switching Capacity |
52 Gbps |
| Forwarding Rate |
38.69 Mpps |
| Power Method |
Universal input, 100—240V AC, 50/60 Hz |
| Power Supply |
AC/DC, internal, 36W |
| Supported Voltage Range |
100—240V AC |
| Max. Power Consumption |
25W (Excluding PoE output) |
| Total Available PoE |
95W |
| Max. PoE wattage per port by PSE |
PoE+: 32W |
| Voltage Range PoE Mode |
PoE: 44—57V
PoE+: 50—57V |
| Button |
Factory reset |
| LCM Display |
(1) 1.3" touchscreen |
| ESD/EMP Protection |
Air: ± 16kV, contact: ± 12kV |
| Shock and Vibration |
ETSI300-019-1.4 Standard |
| Ambient Operating Temperature |
-5 to 45° C (23 to 113° F) |
| Ambient Operating Humidity |
10 to 90% noncondensing |
| Certifications |
CE, FCC, IC |
Backed by a 1 year Ubiquiti warranty.
