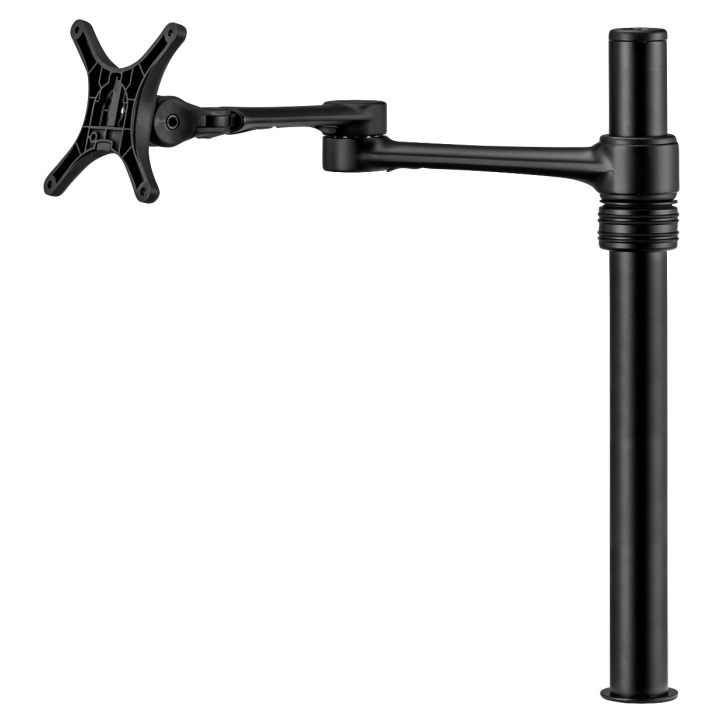

Atdec AF-AT-B 525mm Visidec Single Articulated Arm Black

The AF-AT-B is the ideal ergonomic and space saving desk monitor mount for corporate or home offices. This beautifully designed and engineered mount delivers exceptional functionality including focal distance, display height settings, and viewing angle fine-tuning. Optional 360° rotation makes sharing your screen simple, and ball bearing arm joints ensure supple, long-life operation. Quick release/attachment display mechanism makes installation and swapping monitors a one-person operation and cables are cleverly managed for a clean and professional look.

AF-AT Features

---

525mm long pole with 422mm articulated arm

Overview

• Flat screen monitors: maximum load up to 8kg
• Curved screen monitors: maximum load up to 5.5kg
• Articulated design with 3 pivot points for further reach
• Optional 360° pole rotation (can be limited to 180°)
• Supports mini PCs (AC-MP accessory sold separately)
• 10-year warranty
• Installation hardware included
• Bolt through and Desk clamp desk fixing options included

Functionality

• Ergonomic
• Landscape or portrait viewing
• Screen sharing capability
• Engineered bearing joints for smooth movement
• Quick-release display head with security screw
• Glare control and optimal viewing angle adjustment via tilt and pan capabilities
• Focal distance control
• Individual monitor height requirements settings
• Offset displays position
• Easy upgrade to dual display mount for notebooks or additional monitors

Design

• Tool-less height adjustment
• Advanced, integrated cable management for a clean look
• Lightweight, durable, recyclable aluminium construction
• Available in silver, black, or white
• Sleek, supple design

Overall Dimensions

Product code	AF-AT
Upgradable to carry additional display	Yes
Material	Aluminium and plastic
Colour Options	Silver, black, silver/white
Warranty	10 years
Desk fixing options	Bolt through and desk clamp options included
COMPATIBILITY
Minimum display weight, kg	0
Flat screen: maximum supported weight, kg	8
Curved screen: maximum supported weight, kg	5.5
VESA mounting hole pattern, mm	75x75, 100x100
Maximum desk thickness allowed (mm)	76 (Desk Clamp); 40 (Bolt-through)
RANGE OF MOVEMENT
Spring assisted height adjustability	No
Rotation around pole	360° rotation/ 180° with rotation limiter
Tilt adjustment	-70° to 70°
Pan adjustment	180° at the display head
Landscape to portrait screen rotation	Yes
Height adjustable	Yes
Maximum arm reach (mm)	422
PACKING DIMENSIONS
Length, single unit (cm)	58
Width, single unit (cm)	22
Height, single box (mm)	9.5
Weight, master carton, kg	17
Weight, single unit, kg	0
Single units per master pack	6
Length, master carton (cm)	59.5
Width, master carton (cm)	45.5
Height, master carton (cm)	30

Product Images

---
