ASUS ROG Crosshair VIII Formula Motherboard
ROG-CROSSHAIR-VIII-FORMULA | ASUSThis product has been discontinued
AMD Ryzen 3rd Generation, AM4 Socket, X570 Chipset, 4x DIMM, Max 128GB DDR4 Un-buffered memory, PCI-E 4.0, 8x SATA3, 2x M.2 Socket 3, Intel I211-AT Gigabit LAN, DisplayPort 1.2, Optical S/PDIF out, gold-plated audio jacks, ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A, 5-Way Optimisation, ASUS Aura Sync RGB, ATX form factor. Backed by a 3 year ASUS warranty.
|
Warning: This product contains a button battery - If swallowed, a lithium battery can cause severe or fatal injuries with 2 hours. - Keep batteries out of reach of children. - If you think batteries may have been swallowed or placed inside any of the body, seek immediate medical attention. |

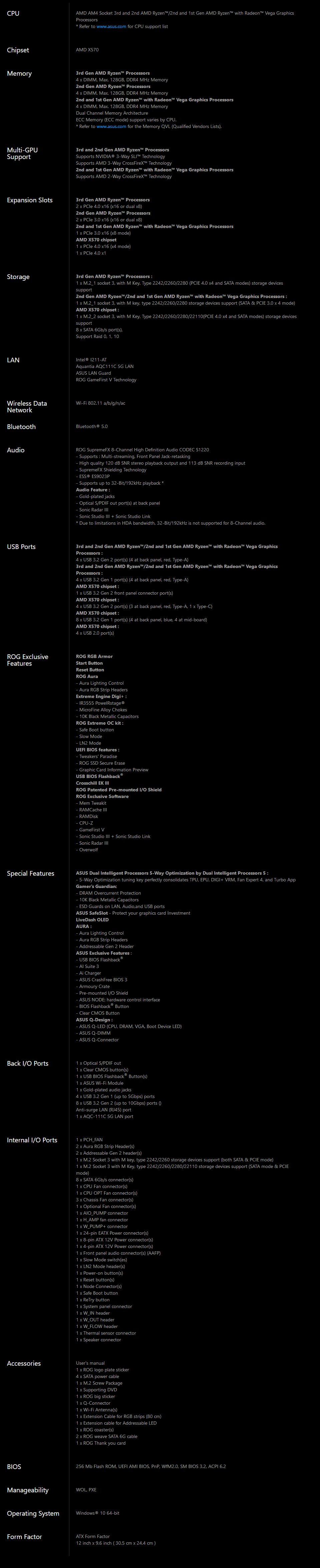

Specifications
| CPU | AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors |
| Chipset | AMD X570 |
| Memory | 4 x DIMM, Max. 128GB, DDR4 4800(O.C.) / 4600(O.C) / 4400(O.C) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz Memory 4 x DIMM, Max. 128GB, DDR4 3600(O.C.) / 3466(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz Memory 3rd Gen AMD Ryzen™ Processors 2nd Gen AMD Ryzen™ Processors 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 4 x DIMM, Max. 128GB, DDR4 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. |
| Multi-GPU Support | 3rd and 2nd Gen AMD Ryzen™ Processors Supports NVIDIA® 2-Way SLI® Technology Supports AMD 3-Way CrossFireX™ Technology Supports AMD 2-Way CrossFireX™ Technology |
| Expansion Slots | 1 x PCIe 4.0 x16 (x4 mode) 2 x PCIe 4.0 x16 (x16 or dual x8) 2 x PCIe 3.0 x16 (x16 or dual x8) 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0 x1 |
| Storage | 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 8 x SATA 6Gb/s port(s), 3rd Gen AMD Ryzen™ Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : AMD X570 chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support Support Raid 0, 1, 10 |
| LAN | Aquantia AQC111C 5G LAN ROG GameFirst V Technology Intel® I211-AT ASUS LAN Guard |
| Bluetooth | Bluetooth® 5.0 |
| Audio | ROG SupremeFX8-Channel High Definition Audio CODEC S1220 - Supports : Multi-streaming, Front Panel Jack-retasking - High quality120dBSNR stereo playback outputand113dBSNR recording input - SupremeFX Shielding Technology - ESS® ES9023P - Gold-plated jacks - Sonic Radar III - Sonic Studio III + Sonic Studio Link - Supports up to 32-Bit/192kHz playback Audio Feature : - Optical S/PDIF out port(s) at back panel Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. |
| USB Ports | 3rd Gen AMD RyzenTM Processors : 4 x USB 3.2 Gen 2 port(s) (4 at back panel, red, Type-A) 2nd Gen AMD RyzenTM/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 4 x USB 3.2 Gen 1 port(s) (4 at back panel, red, Type-A) 4 x USB 3.2 Gen 2 port(s) (3 at back panel, red, Type-A, 1 x Type-C) 8 x USB 3.2 Gen 1 port(s) (4 at back panel, blue, 4 at mid-board) 4 x USB 2.0 port(s) 1 x USB 3.2 Gen 2 front panel connector port(s) AMD X570 chipset : |
| ROG Exclusive Features | USB BIOS FlashBack™ ROG RGB Armor Start Button Reset Button ROG Aura Extreme Engine Digi+ : - IR3555 PoweIRstage® - MicroFine Alloy Chokes - 10K Black Metallic Capacitors ROG Extreme OC kit : - Safe Boot button - Slow Mode - LN2 Mode UEFI BIOS features : - Tweakers´ Paradise - ROG SSD Secure Erase - Graphic Card Information Preview Crosschill EK III ROG Patented Pre-mounted I/O Shield ROG Exclusive Software - Mem Tweakit - RAMCache III - RAMDisk - CPU-Z - GameFirst V - Overwolf |
| Special Features | - BIOS FlashBack™ Button - USB BIOS FlashBack™ ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App Gamer´s Guardian:v - DRAM Overcurrent Protection - ESD Guards on LAN, Audio,and USB ports LiveDash OLED - ASUS NODE: hardware control interface - Clear CMOS Button ASUS SafeSlot - Protect your graphics card Investment AURA : - Aura Lighting Control - Aura RGB Strip Headers - Addressable Gen 2 Header ASUS Exclusive Features : - AI Suite 3 - Ai Charger - ASUS CrashFree BIOS 3 - Armoury Crate - Pre-mounted I/O Shield ASUS Q-Design : - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-DIMM - ASUS Q-Connector |
| Back I/O Ports | 1 x USB BIOS FlashBack™ Button(s) 1 x Clear CMOS button(s) 1 x ASUS Wi-Fi Module 1 x Gold-plated audio jacks 4 x USB 3.2 Gen 1 (up to 5Gbps) ports 8 x USB 3.2 Gen 2 (up to 10Gbps) ports () Anti-surge LAN (RJ45) port 1 x AQC-111C 5G LAN port 1 x Optical S/PDIF out |
| Internal I/O Ports | 2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 4 USB ports 2 x Aura RGB Strip Header(s) 2 x Addressable Gen 2 header(s) 1 x M.2 Socket 3 with M key, type 2242/2260 storage devices support (both SATA & PCIE mode) 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x Optional Fan connector(s) 1 x AIO_PUMP connector 1 x H_AMP fan connector 1 x W_PUMP+ connector 1 x Slow Mode switch(es) 1 x LN2 Mode header(s) 1 x Reset button(s) 1 x Safe Boot button 1 x ReTry button 1 x System panel connector 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Thermal sensor connector 1 x PCH_FAN 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Power-on button(s) 1 x Node Connector(s) 1 x Speaker connector 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x USB 3.2 Gen 2 (up to 10Gbps) connector |
| Accessories | 1 x ROG logo plate sticker 4 x SATA power cable 1 x ROG big sticker 1 x Q-Connector 1 x Wi-Fi Antenna(s) 1 x Extension Cable for RGB strips (80 cm) 1 x ROG coaster(s) 2 x ROG weave SATA 6G cable 1 x ROG Thank you card User´s manual 1 x M.2 Screw Package 1 x Supporting DVD 1 x Extension cable for Addressable LED |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2 |
| Manageability | WOL, PXE |
| Operating System | Windows® 10 64-bit |
| Form Factor | 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) ATX Form Factor |
Backed by a 3-year ASUS warranty.
