Go beyond RGB with Digital-RGB from Phanteks. With Digital-RGB each LED is controlled individually (addressable), featuring more patterns and colour modes. Phanteks introduces an easier and more convenient way to upgrade your lighting solution with our new Digital RGB LED Controller Hub. The Controller Hub can be used manually with the pre-programmed colour modes and patterns using the 3 button remote or sync directly to a compatible DRGB motherboard using the included M/B DRGB adapter.
Features

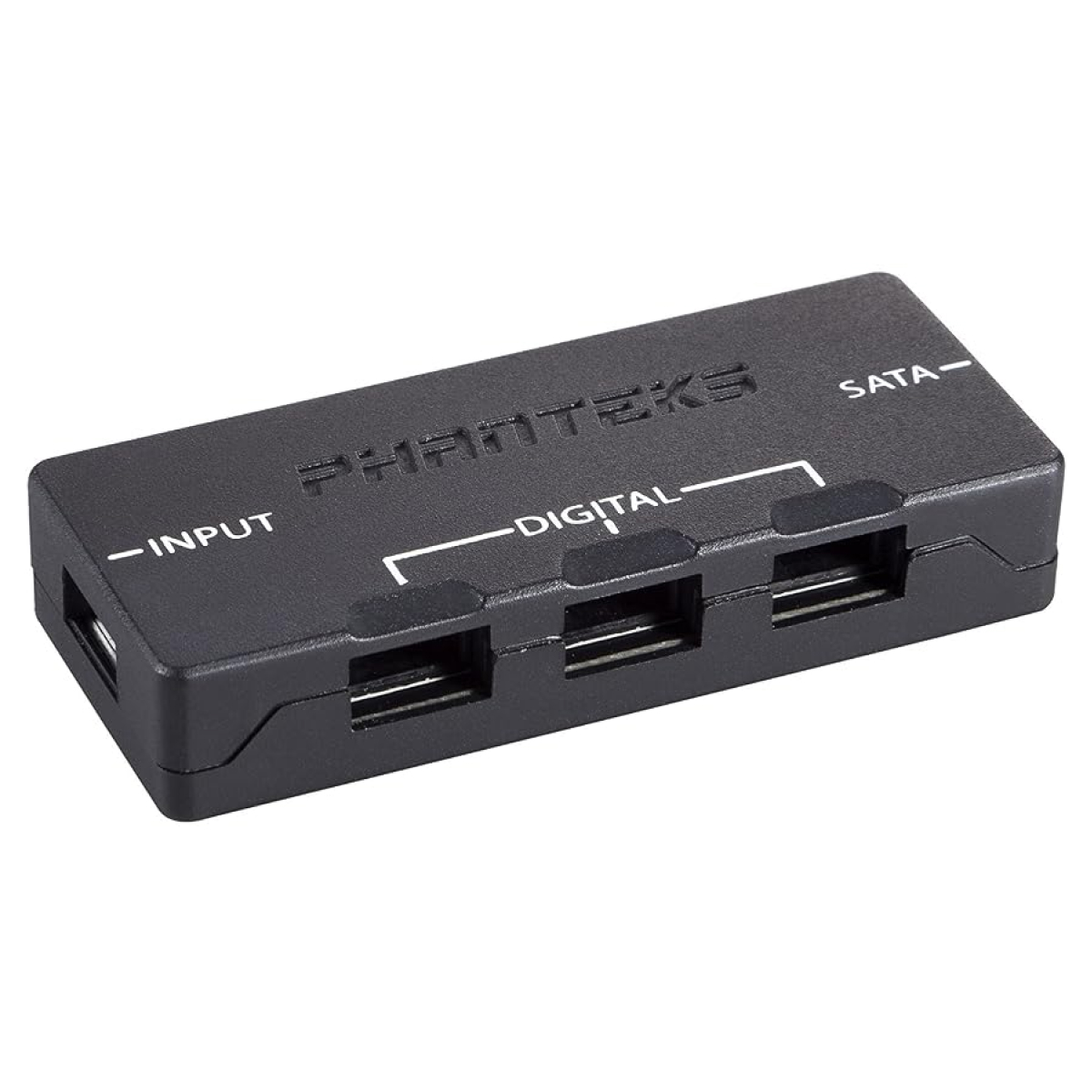

Digital Controller Hub
Go beyond RGB with Digital-RGB from Phanteks. With Digital-RGB each LED is controlled individually (addressable), featuring more patterns and colour modes. Phanteks introduces an easier and more convenient way to upgrade your lighting solution with our new Digital RGB LED Controller Hub. The Controller Hub can be used manually with the preprogrammed colour modes and pattern using the 3 button remote or sync directly to a compatible DRGB motherboard using the included M/B DRGB adapter.
Manual Control
- Customise your lighting with Phantek’s D-RGB controller
- Preprogrammed with the best selection of colour modes and patterns Easy control with a simple 3-button remote
- Works right away, without the installation of additional third party software.
Motherboard Control (Through Software)
- Sync your Digital RGB controller to your (addressable) motherboard with the included D-RGB Motherboard adapter.
- Expand the motherboard supported power output from 3 to 9 Phanteks Digital RGB products.
Place it Anywhere
- Easy installation with integrated magnets for a flexible placement inside your PC enclosure to get the best cable management result.
- Place the remote anywhere within reach with the included Velcro tape.
Connect with Phanteks D-RGB
- Compatible with any Phanteks D-RGB products such as the Halos (Lux) Digital and D-RGB LED strips.
- Daisy chain up to 7x (using remote) or 9x (connected to motherboard) Phanteks' D-RGB products.
Halos Lux Digital
D-RGB LED Combo
Specifications
| Model Number |
PH-CTHUB_DRGB_01 |
| Application |
For Phanteks Digital RGB products
M/B with ASUS/MSI with D-RGB (+5V, Data, N/A, GND) |
| Colour Effects |
Full RGB Colour Spectrum
Custom Preset modes (3-button Remote)
Motherboard S/W support |
| Connections |
Input: Phanteks 3-pin (female) Connector
For Phanteks Digital Solution (Case, LED Strips, Halos Digital Series)
M/B Adapter (Digital RGB Adapter Pin Header) |
| Electricity Specification |
Digital RGB 5V |
| External Power |
Phanteks Controller Hub: 7A (does not include M/B current) |
| Controller Specification |
Output Current: 7A
Power Usage: 35W |
| Single Channel (A) |
4A |
| Single Channel (W) |
20W |
| Support Compatibility |
Halos Digital RGB (6pcs in total)
Digital RGB Strip (6M in total) |
| MTBF |
20,000hrs |
| I/0 |
Function Button: (Colour/Mode/Speed)
Output Connector: 3 Output
SATA Power: 1 input |
| Dimensions |
Control Board: 65 x 27 x 12mm / 2.56 x 0.6 x 0.47in
Remote: 42 x 20 x 8mm / 1.63 x 0.79 x 0.32in |
| Scope of Delivery |
1 x Digital RGB Control Hub
1 x Digital RGB 3-Button Remote
1 x Controller Cable (1000mm)
1 x SATA Power Cable (200mm)
3 x Digital RGB Output Cable (70mm)
1 x Digital RGB M/B adapter (600mm)
1 x 3M Velcro Sticker (for Remote) |
| Colour |
Black |
| Warranty |
2 Years |
Backed by a 2 year Phanteks warranty.
