Creative Sound Blaster Audigy Rx Sound Card

Experience the wonders of multi-channel surround sound and create high-quality podcasts. Hardware-accelerated EAX effects let you incorporate many types of sound effects with ease. Sound Blaster Audigy Rx (70SB155000001) features an SNR of 106dB, a 600-ohm headphone amp for studio monitoring, and a software suite that allows full audio customisation.

Features

---

Sound Blaster Audigy Rx

The Optimal Recording Solution for PCIe Platforms

Experience the wonders of multi-channel surround sound and create high-quality podcasts! Hardware-accelerated EAX effects lets you incorporate many types of sound effects with ease. Sound Blaster Audigy Rx features an SNR of 106dB, a 600-ohm headphone amp for studio monitoring, and a software suite that allows full audio customisation.

Audio Performance

Premium Sound Blaster Quality

Enjoy premium Sound Blaster audio quality over and above basic motherboard audio with a Signal-to-Noise Ratio (SNR) of 106dB. Plus, Stereo Direct lets you listen to your music pure and unprocessed at the amazing bit rate of 24-bit 192 kHz.

Enjoy Cinematic Surround Sound

The Sound Blaster Audigy Rx also lets you enjoy a truly cinematic experience, supporting up to 7.1 multi-channel speaker output. It gives you an immersive, cinematic audio experience for your movies, games and more!

Guide to 7.1 Setup on Audigy RX

Guide to 7.1 Output with Sound Blaster Audigy Rx and Sound Blaster Audigy 5

How to Connect the Sound Blaster Audigy Rx / Audigy 5 to 7.1 Speaker System - Using Sound Blaster's Proprietary Connectors

The signal (pin-out) of the 7.1 connectors on Sound Blaster Audigy Rx / Audigy 5. While the 7.1 configuration for the Sound Blaster Audigy Rx / Audigy 5 is proprietary, there are other ways to achieve 7.1 output with cables that are widely available online and in most major electronics stores.

• Line-out 1 Jack (Front Left / Right)
• Line-out 2 Jack (Rear Left / Right / Side Right)
• Line-out 3 Jack (Centre / Sub / Side Left)
• Front Left
• Front Right
• Ground
• Rear Left
• Rear Right
• Side Right
• Centre
• Subwoofer
• Side Left

How to Connect the Sound Blaster Audigy Rx / Audigy 5 to 7.1 Speaker System - Using Female RCA Connectors

The cables required (purchased separately) to connect 7.1 speaker systems with female RCA connectors to the Sound Blaster Audigy Rx / Audigy 5.

• 3.5 mm jack to Male RCA audio cable
• 3.5 mm jack to Male RCA AV cable

Cables Required (Purchased Separately)

• 1 set of 3.5 mm jack to Male RCA audio cable: For Front Left and Front Right
• 2 sets of 3.5 mm jack to Male RCA AV cable: 1 set for Rear Left, Rear Right, and Side Right; 1 set for Centre / Sub and Side Left

Note: Different speaker systems may implement the connection for 7.1 differently, hence, the actual connection may vary. Try swapping between the White, Red, or Yellow connectors to get the correct channels.

How to Connect the Sound Blaster Audigy Rx / Audigy 5 to 7.1 Speaker System - Using Male RCA Connectors

The cables required (purchased separately) to connect 7.1 speaker systems with male RCA connectors to the Sound Blaster Audigy Rx / Audigy 5.

• 3.5 mm jack to Female RCA audio cable
• 3.5 mm jack to Female RCA AV cable

Cables Required (Purchased Separately)

• 1 set of 3.5 mm jack to Female RCA audio cable: For Front Left and Front Right
• 2 sets of 3.5 mm jack to Female RCA AV cable: 1 set for Rear Left, Rear Right, and Side Right; 1 set for Centre / Sub and Side Left

Note: Different speaker systems may implement the connection for 7.1 differently, hence, the actual connection may vary. Try swapping between the White, Red, or Yellow connectors to get the correct channels.

How to Connect the Sound Blaster Audigy Rx / Audigy 5 to 7.1 Speaker System - Using Male 3.5 mm Connectors

The cables required (purchased separately) to connect 7.1 speaker systems with male 3.5 mm connectors to the Sound Blaster Audigy Rx / Audigy 5.

• 3.5 mm jack to Female RCA AV cable
• Female 3.5 mm jack to Male RCA audio cable

Cables Required (Purchased Separately)

• 2 sets of 3.5 mm jack to Female RCA AV cable: 1 set for Rear Left, Rear Right, and Side Right: 1 set for Centre / Sub and Side Left
• 3 sets of Female 3.5 mm jack to Male RCA audio cable: Intermediate connectors to 7.1 speaker system's Male 3.5 mm connectors

Note: Different speaker systems may implement the connection for 7.1 differently, hence, the actual connection may vary. Try swapping between the White, Red, or Yellow connectors to get the correct channels.

How to Connect the Sound Blaster Audigy Rx / Audigy 5 to 7.1 Speaker System - Using Female 3.5 mm Connectors

The cables required (purchased separately) to connect 7.1 speaker systems with female 3.5 mm connectors to the Sound Blaster Audigy Rx / Audigy 5.

• Connect 3.5 mm Stereo cable to Line-out 1 and 71 Speaker System's female 3.5 mm connector
• 3.5 mm jack to Female RCA AV cable
• Male 3.5 mm jack to Male RCA audio cable

Cables Required (Purchased Separately)

• 1 set of 3.5 mm Stereo to 3.5 mm Stereo cable: For Front Left and Front Right
• 2 sets of 3.5 mm jack to Female RCA AV cable: 1 set for Rear Left, Rear Right, and Side Right; 1 set for Centre / Sub and Side Left
• 3 sets of Male 3.5 mm jack to Male RCA audio cable: Intermediate connectors to 7.1 speaker system's Female 3.5 mm connectors

Note: Different speaker systems may implement the connection for 7.1 differently, hence, the actual connection may vary. Try swapping between the White, Red, or Yellow connectors to get the correct channels.

Advanced Effects Processing

The Sound Blaster Audigy Rx is an advanced sound card that represents the perfect upgrade from basic motherboard audio to immersive cinematic surround sound. With its advanced chipset designed to process our legendary EAX reverb engine, you can look forward to experiencing superb 7.1 multi-channel audio. It also features an SNR of 106dB and the Sound Blaster Audigy Rx Control Panel, a dedicated PC software that allows you full control of every aspect of your sound card.

If you're big on entertainment, you would also love it for its EAX Studio software that allows for additional hardware-accelerated environmental effects to your music, movies, games as well as for your voice input and communications.

E-MU Chipset for Advanced Effects Processing

Sound Blaster Audigy Rx features the Creative E-MU chipset, which was designed to process our legendary reverb engine EAX (Environmental Audio eXtensions) and deliver amazing cinematic audio playback effects without having to bog down your CPU. This ensures you get great quality effects and audio without affecting your computer's processing power.

Connectivity

Dual Microphone Inputs

The sound card has two microphone inputs to allow you to grab a friend to sing simultaneously! Or, use the second input to record the music accompaniment while you sing. The possibilities are endless!

Dedicated High-Quality Headphone Amp

With the 600-ohm headphone amplifier, the Sound Blaster Audigy Rx is able to drive the most demanding of studio headphones.

Audio Recording

Super Low-Latency Audio Recordings

Enjoy reduced latency with the support of Audio Stream Input/Output (ASIO) drivers, making Sound Blaster Audigy Rx the perfect solution for high-quality, low-latency audio recordings.

Bundled Creative Recording Software

Keen to get started on recording right away? Sound Blaster Audigy Rx comes with recording software such as Creative WaveStudio and Creative Smart Recorder, so you can create your content immediately!

Customisation

Control and Customise Your Audio

Sound Blaster Audigy Rx Control Panel is a dedicated PC application that lets you control and customise every aspect of your sound card. You can adjust your Creative Multi Speaker Surround (CMSS or CMSS 3D) settings to up mix stereo content to hear yourself while you record so you can hear the effects instantaneously.

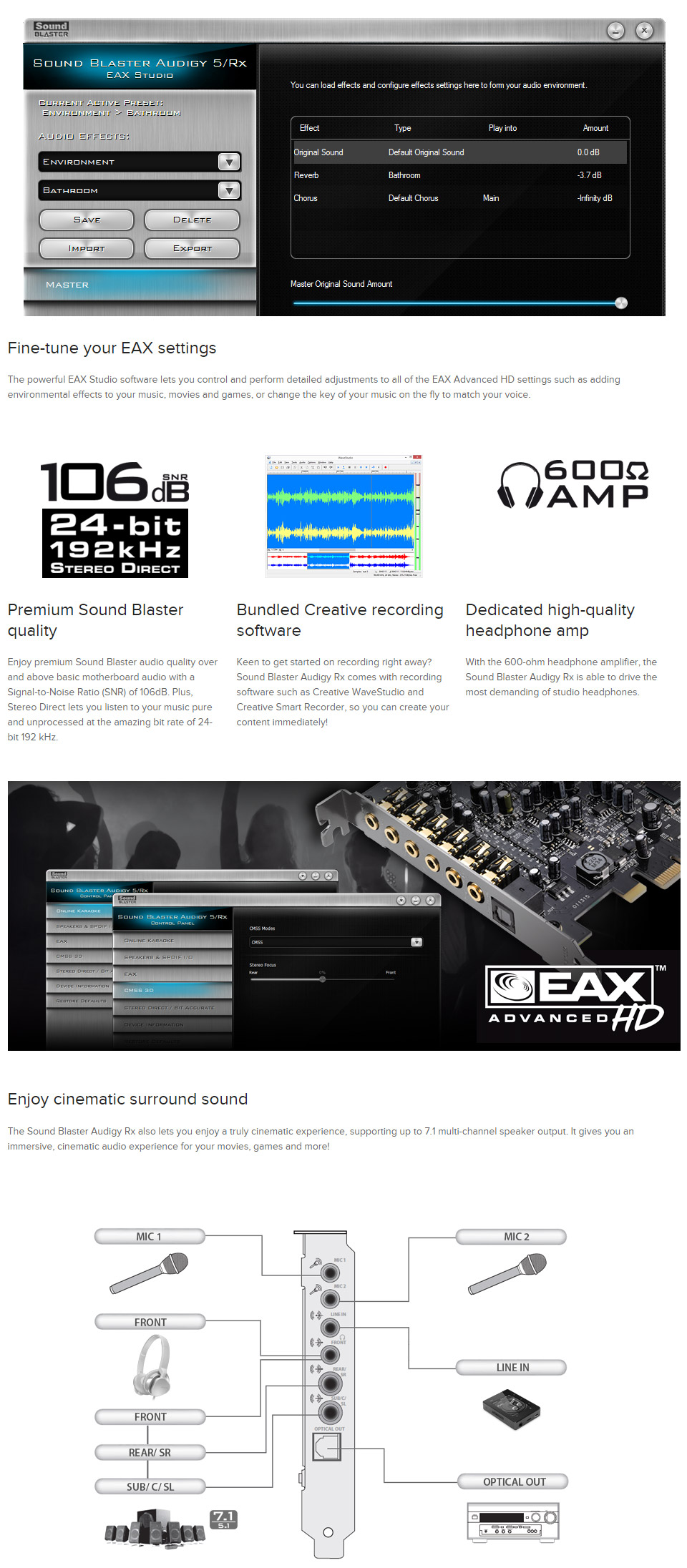

Fine-Tune Your EAX Settings

The powerful EAX Studio software lets you control and perform detailed adjustments to all of the EAX Advanced HD settings such as adding environmental effects to your music, movies and games, or change the key of your music on the fly to match your voice.
